What is the width of the sliding rail? Analysis of the application scenarios for 20mm width
Common specifications for slide rail width
The width of a slide rail typically refers to the width of a single track or the width of the bottom surface of the slide block. Depending on different usage requirements, it can mainly be classified into the following categories:

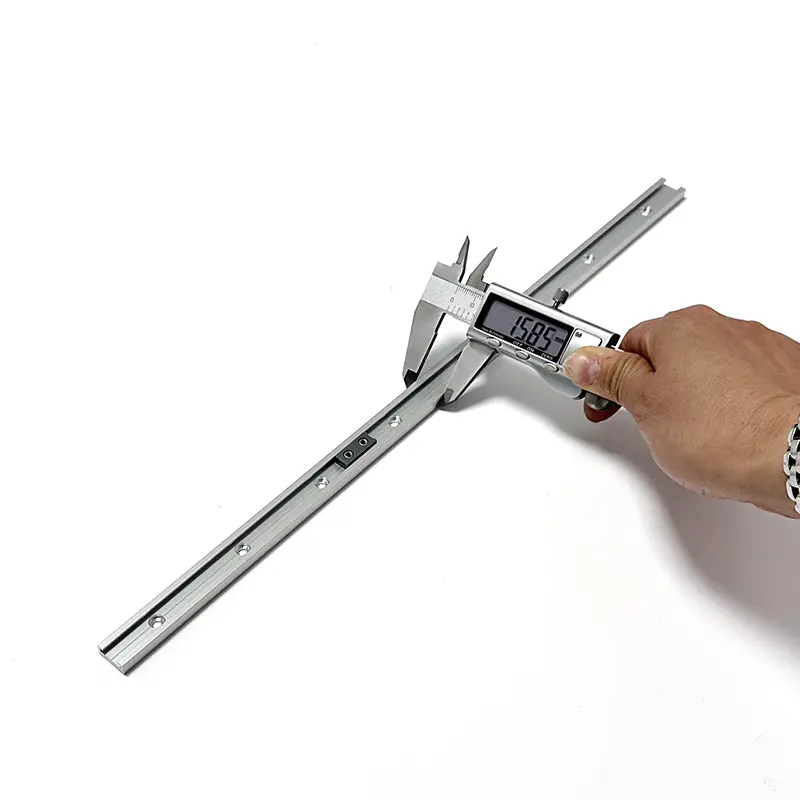

1. Miniature and narrow type (3mm - 15mm): Mainly used for internal components of electronic devices, precision instruments, drawer locks or lightweight drawers, featuring small size and relatively low load-bearing capacity.
2. Standard type (20mm - 30mm): This is the most widely used range, balancing load-bearing capacity, installation space and aesthetics, suitable for most furniture drawers, keyboard trays and industrial chassis.

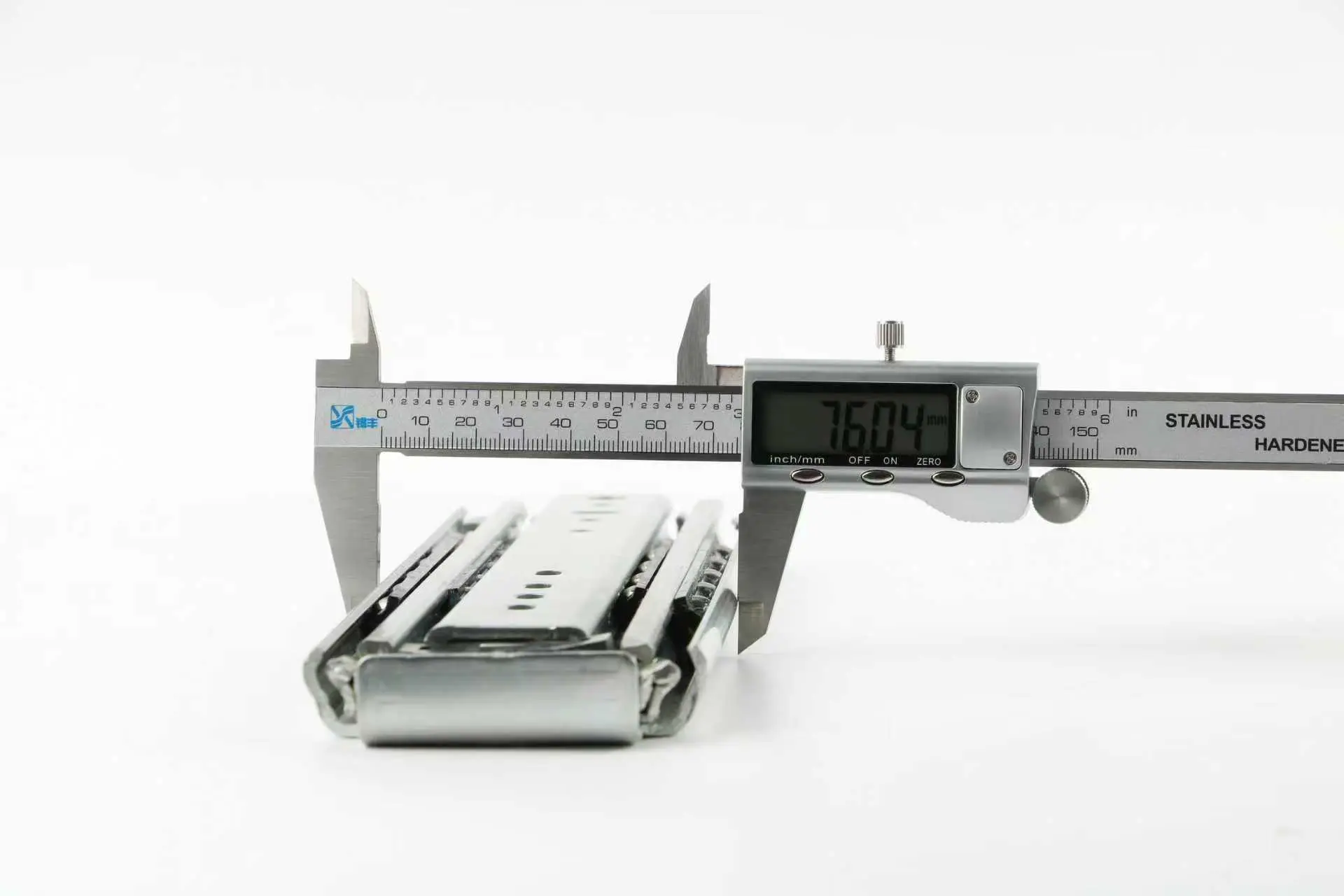

3. Heavy-duty and extra-wide type (35mm - 76mm+): Specifically designed for extremely heavy loads, such as server cabinets, heavy-duty tool carts, and heavy-duty kitchen pull-out baskets, with extremely stable structure.
20mm width slide rail: Why is it so popular?
The 20mm width slide rail (such as the common SBR20 or IDA61 series) is exactly at the "standard" golden position. It is neither as thin as 15mm nor as bulky and space-consuming as 30mm or above.
The core advantages of the 20mm slide rail:
● High space utilization: The 20mm width is very suitable for side installation (side mounting), not occupying too much vertical space inside the cabinet, allowing drawers or partitions to be made thinner and more exquisite.
● Balance of rigidity and aesthetics: This width of slide rail usually has excellent torsional rigidity and runs smoothly. At the same time, its lines are simple and neat, which is very suitable for modern minimalist and industrial style designs.
● Moderate load capacity: High-quality 20mm industrial slide rails usually can bear 30kg-50kg or even higher weights (depending on length and material), sufficient to meet the needs of most daily and industrial light to medium load requirements.
Typical application scenarios of 20mm slide rails
Thanks to its "not too big, not too small" characteristic, 20mm slide rails perform exceptionally well in the following scenarios:
● Modern minimalist furniture: used for suspended drawers, concealed bookshelves, glass display cases, etc. Its narrow edge design does not disrupt the overall lightness.
● Kitchen and bathroom: suitable for installation in narrow cabinets, used for spice baskets, dish racks or trash can holders.
● Industrial and commercial equipment: commonly used in industrial control cabinets, server trays, medical equipment trolleys and mobile workbenches in laboratories.
● DIY and workshops: due to its standard size and abundant accessories, it is the preferred choice for many woodworking enthusiasts and mechanical modification projects.
Recommended Product: SS1620PT Stainless Steel Lightweight Slide Rail
If you are looking for a high-performance 20mm wide slide rail, we highly recommend the SS1620PT model from Truslider Company.
This product is the outstanding choice among 20mm narrow slide rails, perfectly demonstrating the advantages of this size:
● Precise dimensions, narrow design:

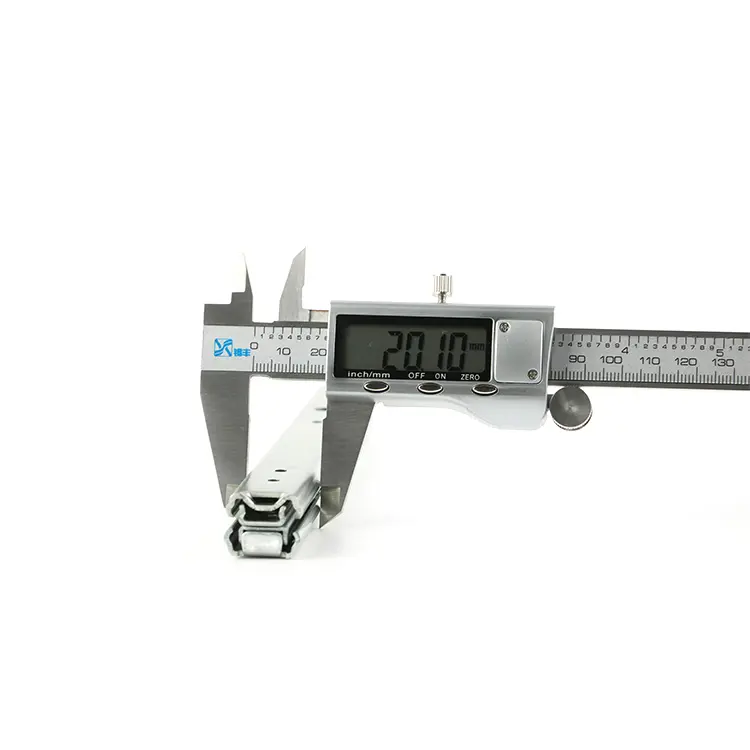

The slide rail of SS1620PT is precisely designed to be 20mm wide, with a compact and smooth line. It is specially designed for modern compact spaces, and after installation, it does not appear out of place. It is an ideal choice for creating a minimalist industrial style.
● 30kg Strong Load Capacity:
Despite its slender design, it incorporates a precise ball bearing system inside. It can stably support up to 30kg of weight. Whether it's a drawer filled with files or heavy objects in the kitchen, it can easily bear the load and move smoothly like silk.
● Full Environmental Adaptability:
Made of high-quality stainless steel and polished to a fine finish. It not only has a cold and metallic texture but also has excellent corrosion resistance. Whether facing the smoke and steam in the kitchen or the damp environment in the laboratory, it can effectively resist rust and remain shiny as new.
● Silent and Durable:
The optimized internal circulation system ensures quiet operation for a long time. Even with high-frequency usage, it can maintain stable performance and is a wise choice for improving space utilization and user experience.
About Truslider
Truslider is a professional company specializing in linear motion systems, dedicated to providing high-performance slide rail solutions for global customers.
We have a diverse product line, including cold-rolled steel, bearing steel, stainless steel, aluminum alloy, and various customized slide rails. From precise micro rails to heavy-duty tracks with astonishing carrying capacity, Truslider's products are widely used in aerospace, railways, medical, automation equipment, and high-end furniture industries.
Choosing Truslider means choosing professionalism, stability, and innovation. We not only offer standard products but also can provide customized services according to your specific needs, helping your equipment and designs achieve a more perfect operation experience.
