description1
| Brand | Truslide |
| Product name | Heavy duty telescopic slides |
| Installation method | Slide mounted with screw fixing |
| Material | Heat-treated steel、bluing |

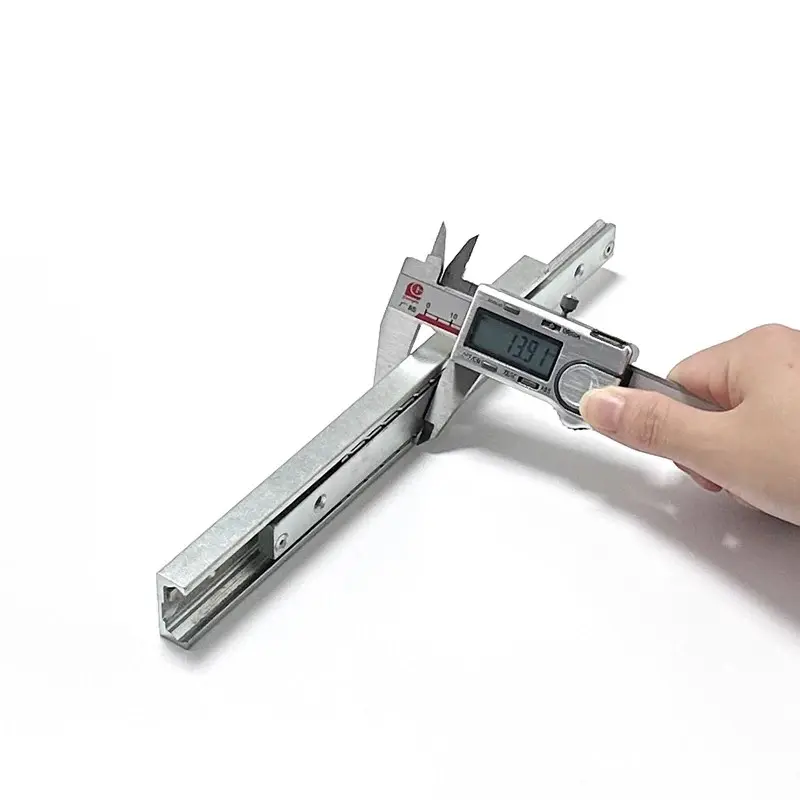

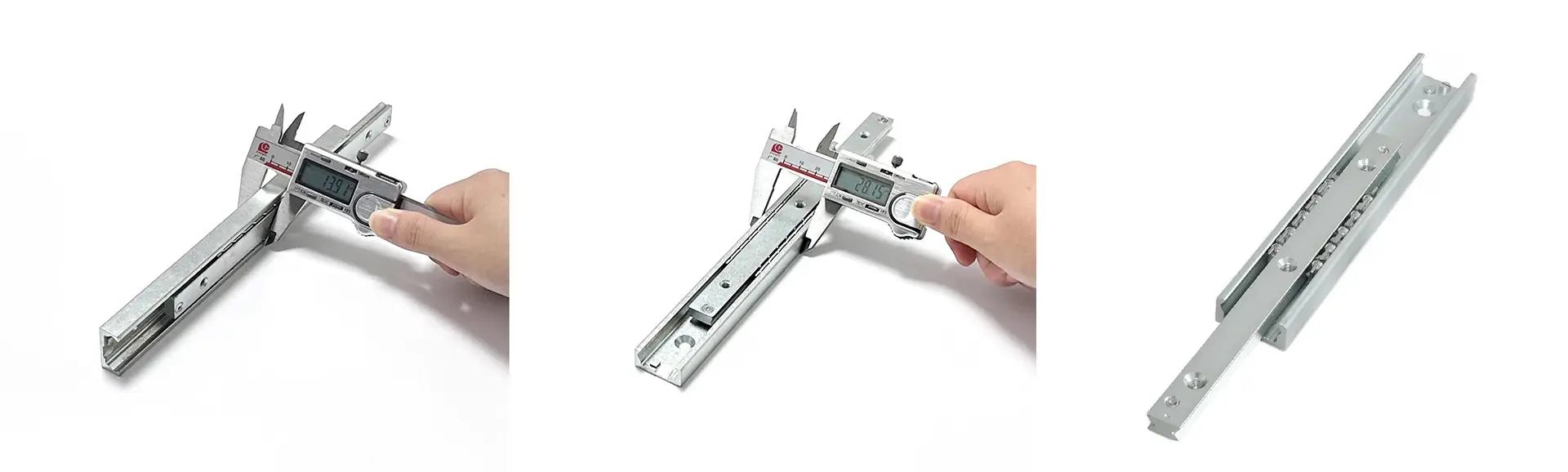

| Section thickness | 13mm |

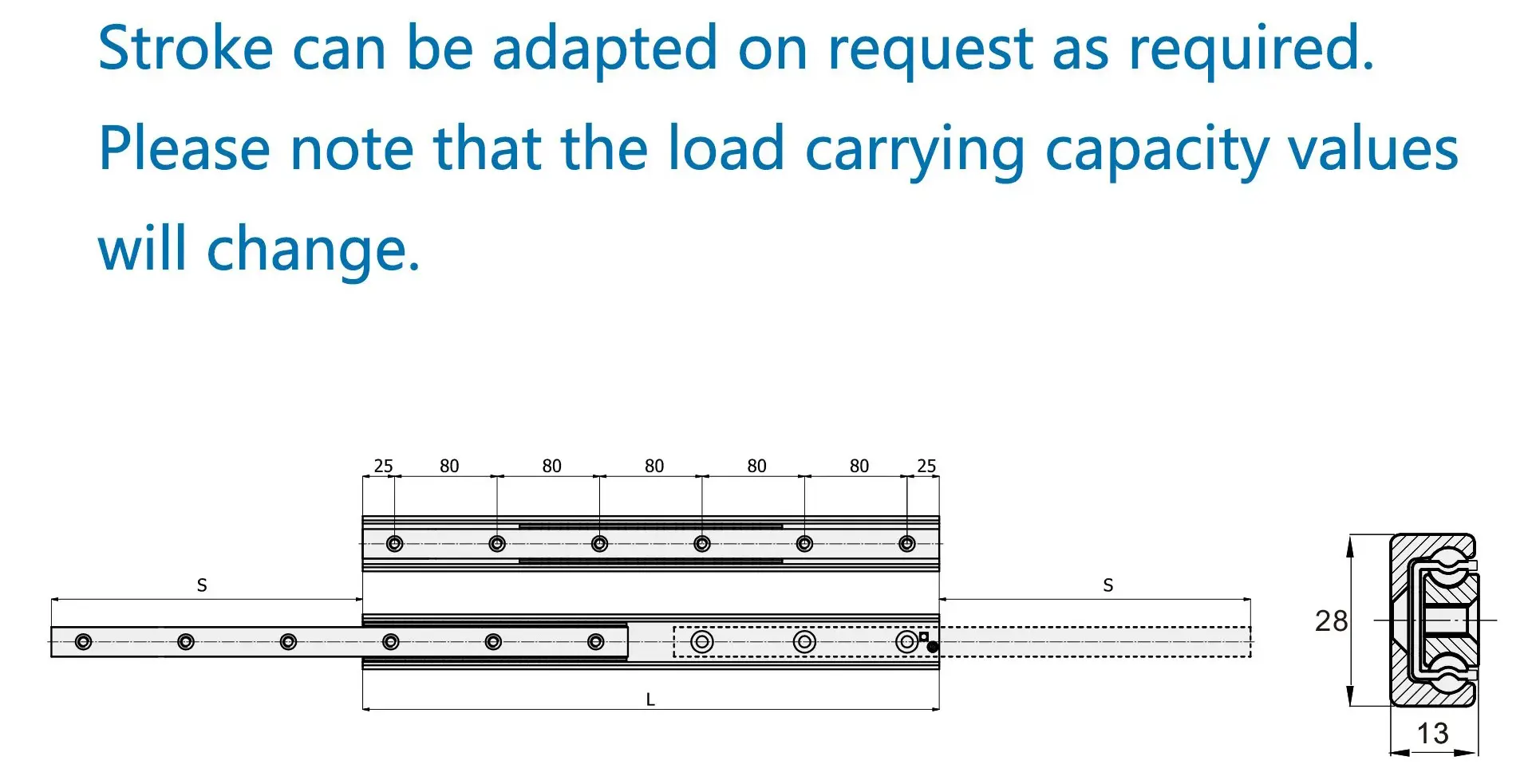

| Feature | Custom length(drilling distance,start and end distance of stroke) |

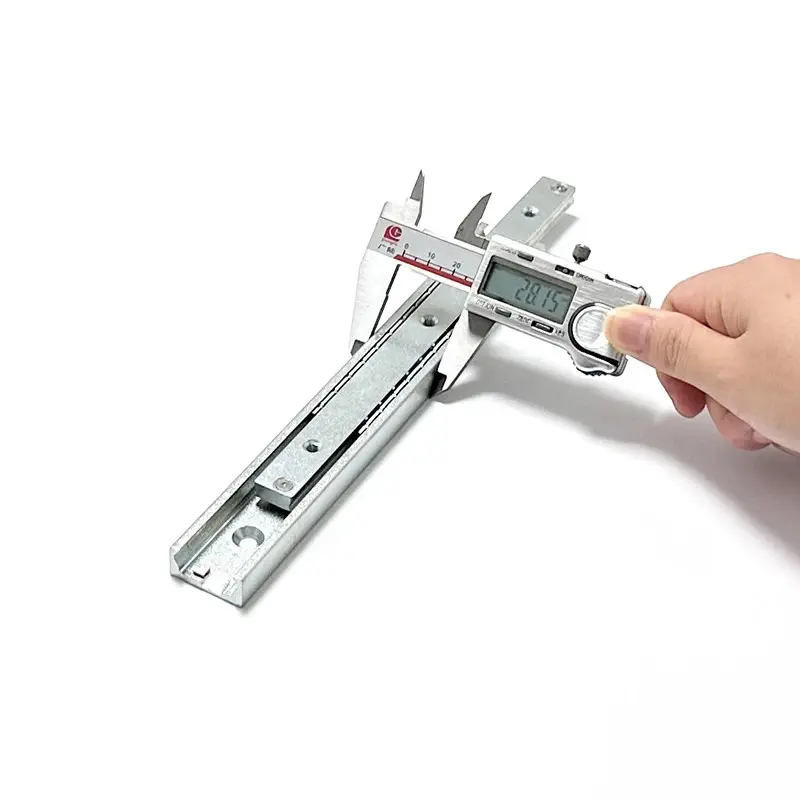

| Product length | wide:28mm/130mm-1170mm |

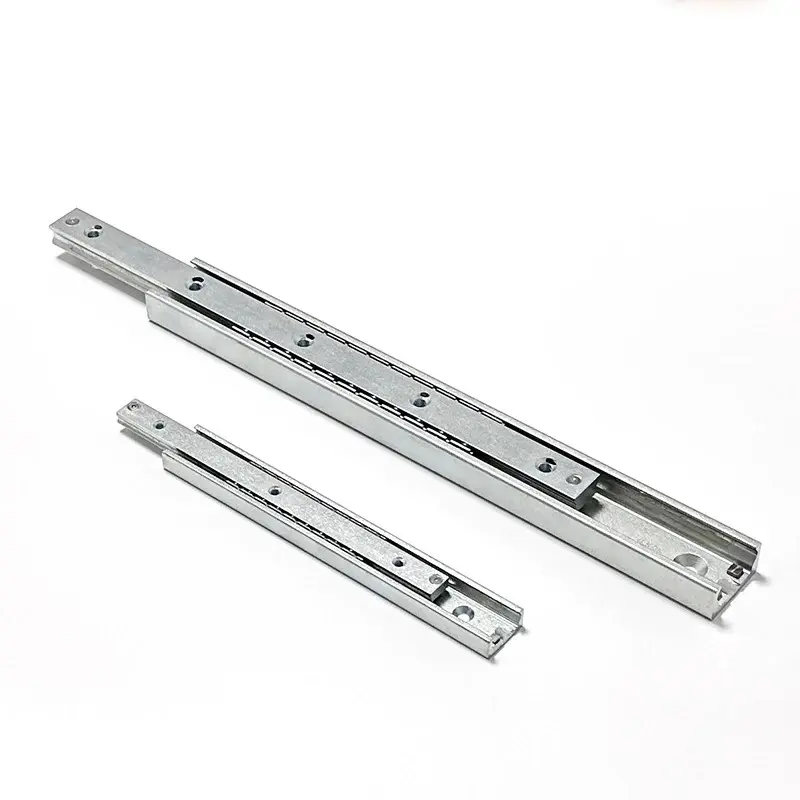

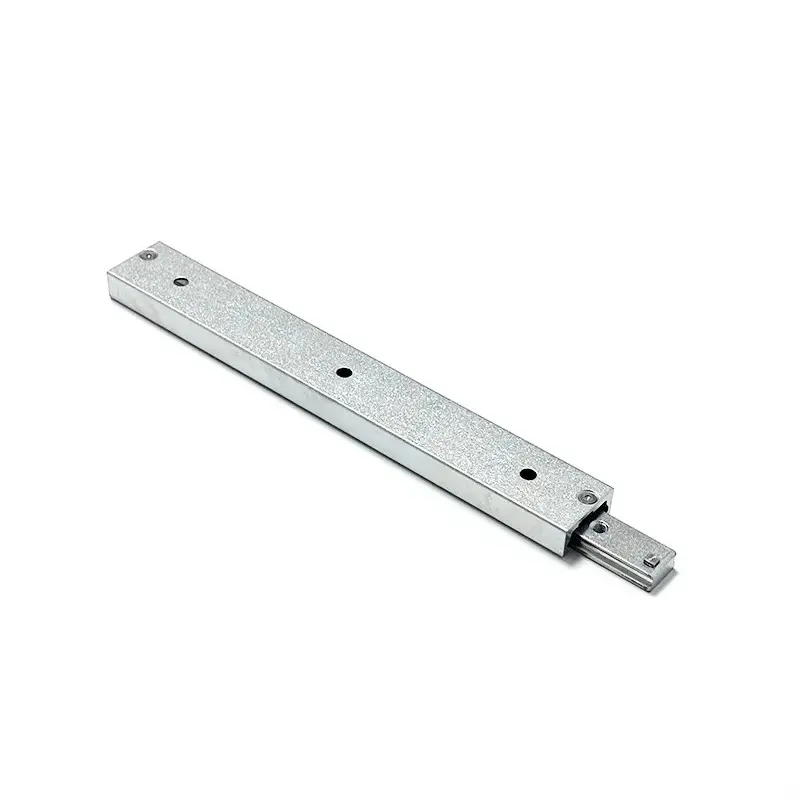

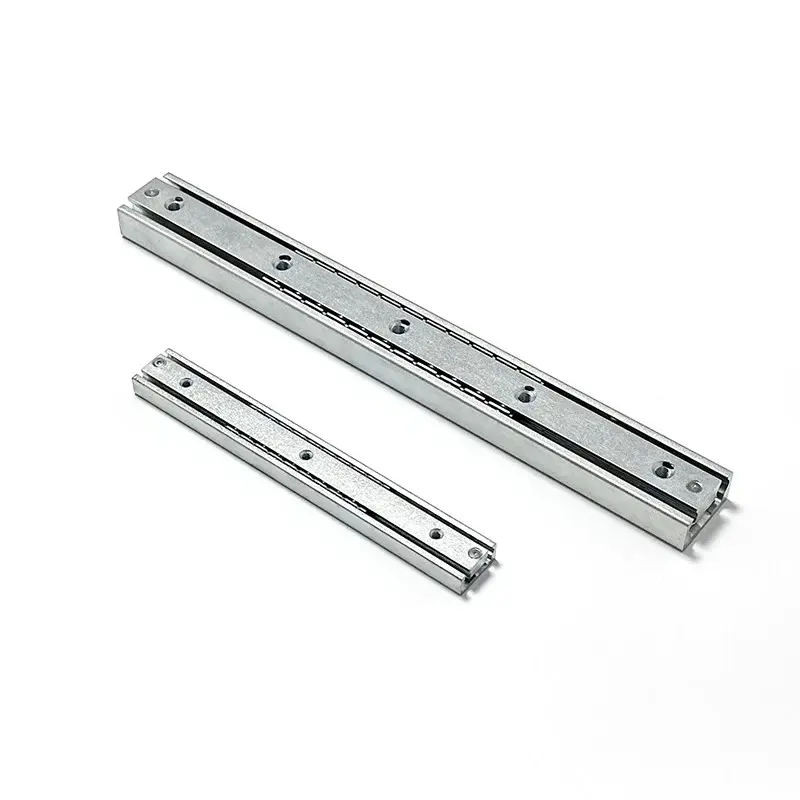

Crafted from premium heat-treated steel, both the rail and carriage are finished with a durable tri-layer protection system: a foundational galvanization, a corrosion-resistant blue passivation layer, and a hardened surface treatment on the raceway for prolonged service life. The internal ball bearings, made from wear-resistant bearing steel, ensure silky-smooth operation even under heavy loads.
The innovative inner carriage design includes a safety mechanism to prevent accidental disengagement, providing peace of mind. Fully customizable hole patterns and lengths make integration into your project seamless.

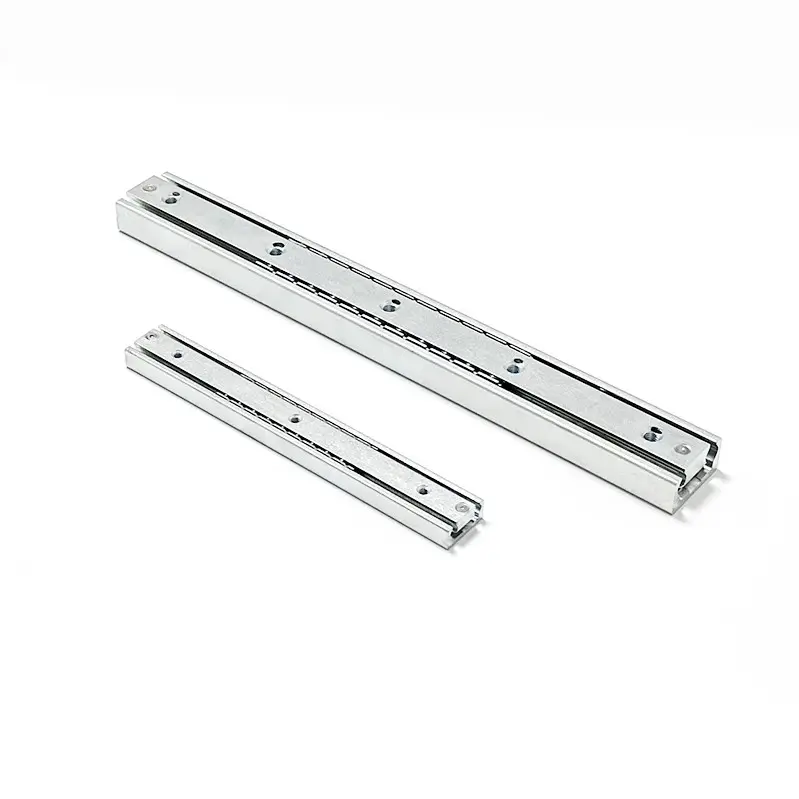

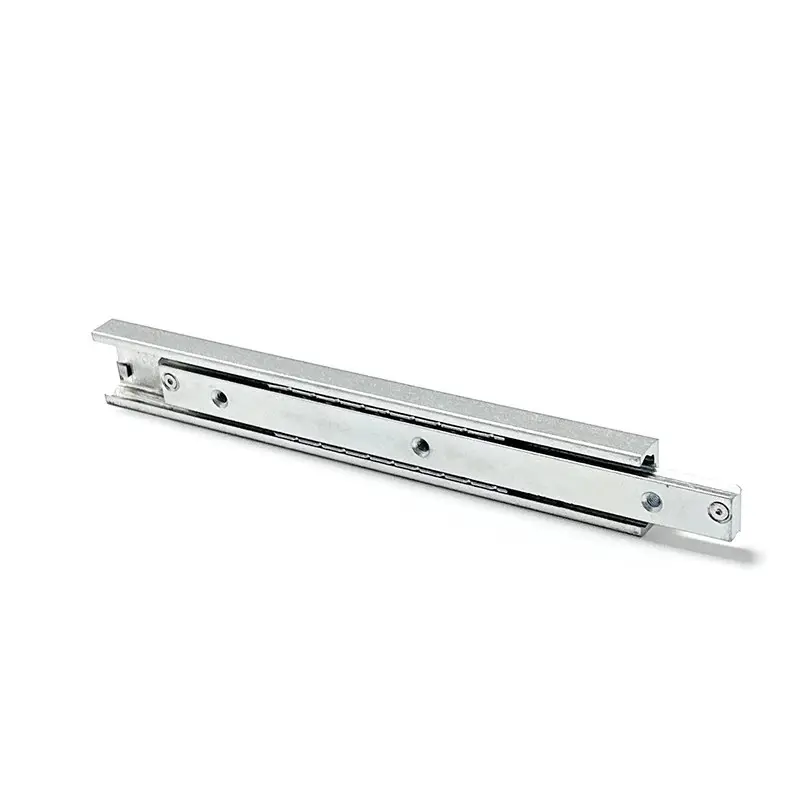

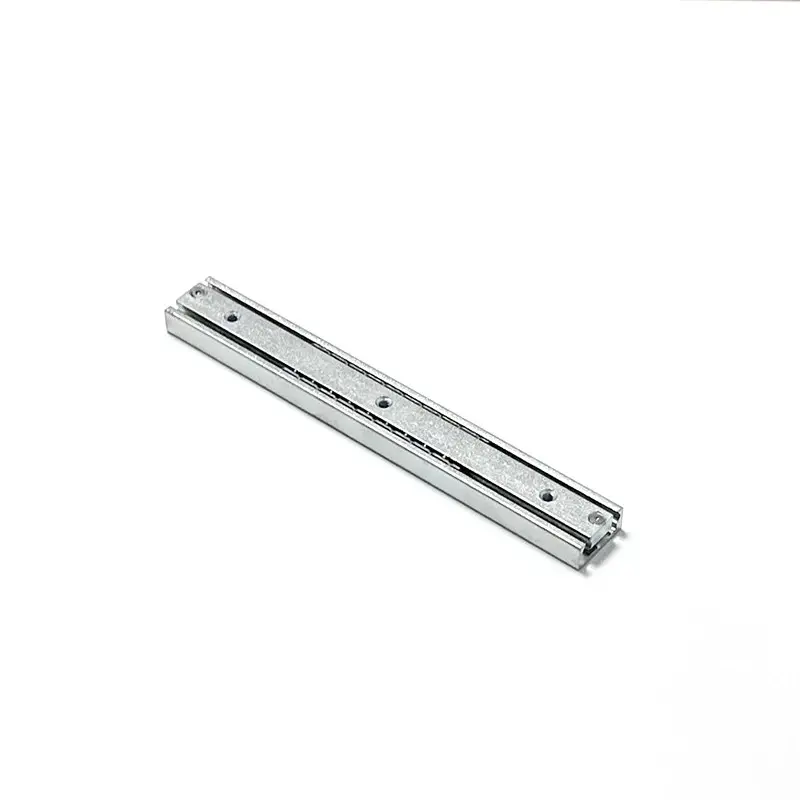

Model Number: GS1328SX
Max Load Capacity: 1500 kg
Movement Type: Bidirectional / Over-travel Design
Core Material: Heat-Treated Steel
Finish: Galvanized & Blue Passivation
Key Features: Over-travel Functionality, Anti-Derailment Lock, Customizable Hole Spacing & Lengths
Primary Applications: Industrial Storeroom Drawer Systems, Sliding Door Mechanisms, Precision Jigs & Fixtures
Massive 1500 kg Load Rating: Haul massive tools, equipment, or materials with absolute confidence. Build your project on a foundation of strength.
True Bidirectional Travel: Unlike standard slides, our design allows the carriage to move past the end of the rail. Perfect for completely removing drawers or panels without obstruction.
Built to Last: Manufactured from solid heat-treated steel and protected with a superior galvanized and blue passivated finish to resist rust and wear. The hardened steel ball track ensures minimal friction and extreme durability.
Safety First: An integrated safety feature prevents the carriage from accidentally separating from the rail, keeping your valuable contents secure.
Your Project, Your Way: We offer complete customization of rail lengths and hole patterns to ensure a perfect fit for your specific application, whether it’s for a custom workbench, an industrial cabinet, or a specialized machine.
Transform your storage solutions and machinery today. Ask us about the GS1328SX.
The GS1328SX is a high-performance heavy-duty drawer slide engineered for demanding industrial and commercial applications. Below are its core technical specifications and features presented in detail:
● Part Number: GS1328SX
● Product Type: Heavy-duty ball bearing drawer slide designed for linear motion control.
● Construction Material: Both the rail and carriage are fabricated from heat-treated carbon steel, ensuring exceptional strength and fatigue resistance under heavy loads.
● Surface Treatment: A dual-layer protective finish combines galvanization (zinc coating) with blue passivation, offering superior corrosion resistance and a professional appearance.
● Maximum Dynamic Load Capacity: Rated for loads up to 1500 kg, making it suitable for heavy storage units, machinery components, and industrial equipment.
● Movement Mechanism: Features bidirectional travel capability, allowing the carriage to extend fully beyond the ends of the rail for complete access and ease of maintenance.

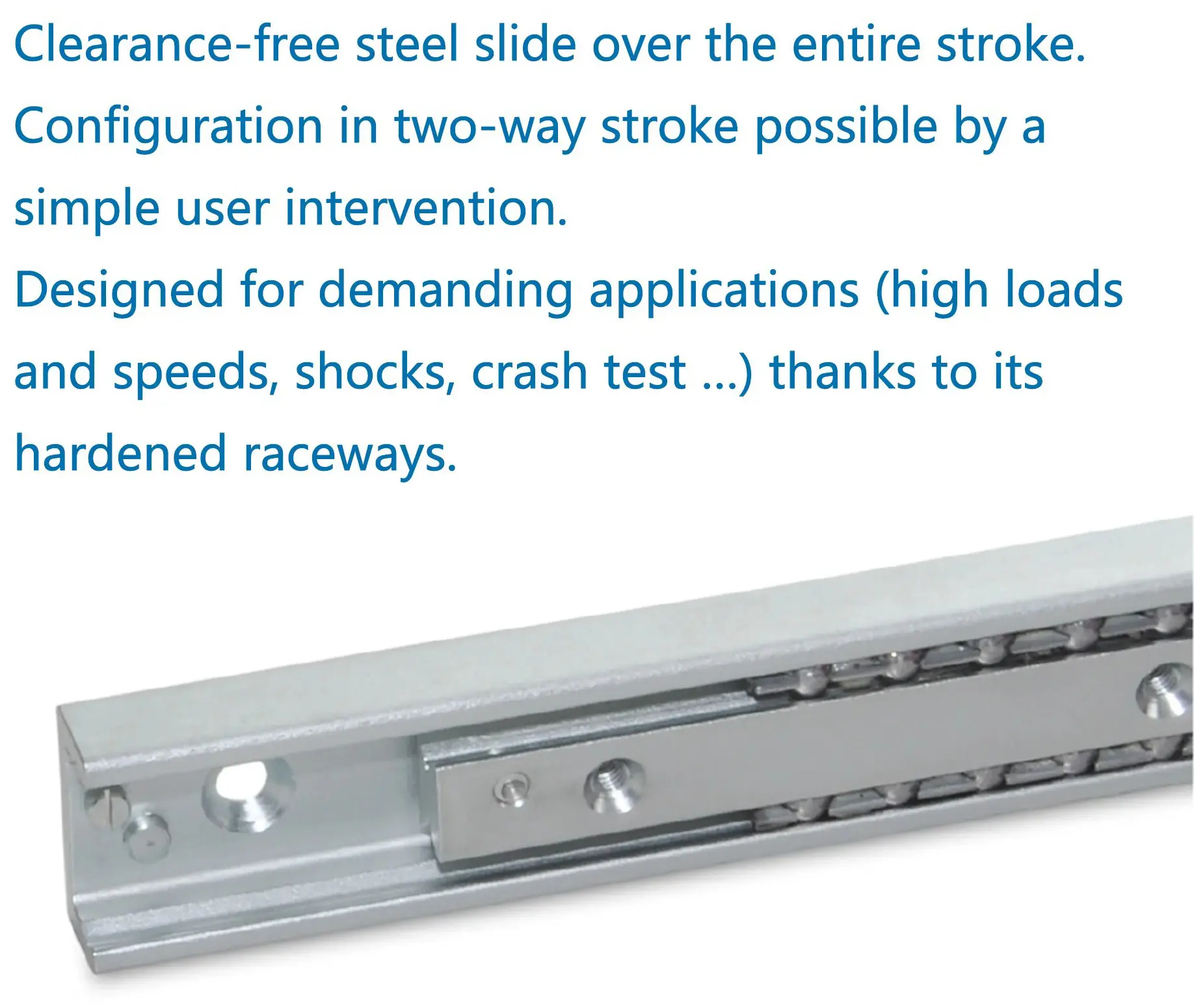

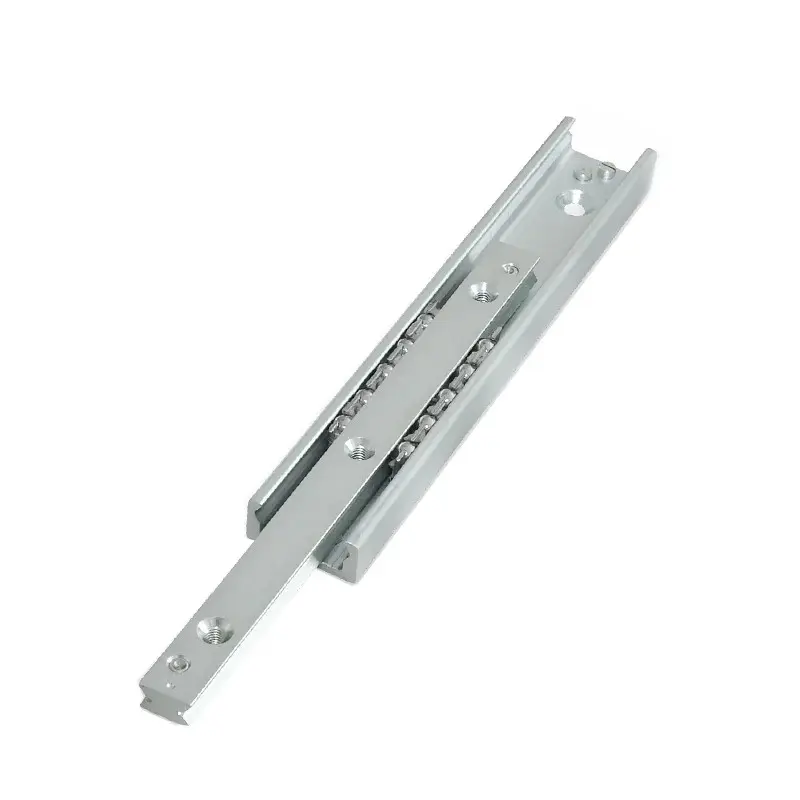

● Ball Bearing System: Precision-machined balls made from wear-resistant bearing steel operate on a hardened raceway surface, reducing friction and ensuring smooth, quiet operation even at maximum load.
● Carriage Safety Design: Incorporates an anti-derailment latch mechanism to prevent accidental separation of the carriage from the rail, enhancing operational safety.
● Mounting Flexibility: Offers customizable hole spacing and slot positions to accommodate diverse installation requirements. Rail lengths can also be tailored to specific project dimensions.
● Typical Applications: Commonly used in industrial storage cabinets, heavy-duty tool chests, machinery access doors, articulated arm systems, and precision jigs or fixtures where reliable linear motion is critical.
● Key Advantages: High load capacity, bidirectional over-travel functionality, robust corrosion resistance, and enhanced safety against accidental disengagement.
This product delivers durability, versatility, and performance for professionals seeking a reliable solution for heavy-duty linear motion challenges. Custom configurations are available upon request.
Subject: Level Up Your Build With Our 1500kg Monster Slide!
Stop settling for less! Your project deserves the best.Meet the GS1328SX – our top-of-the-line heavy-duty slide built for serious loads and seamless performance.
Key Features You Need to Know:
✔️ CARRY HEAVY LOADS: An enormous 1500kg / 3300lb+ capacity!
✔️ SMOOTH & VERSATILE MOTION: Moves forward AND backward, extending fully past the rail ends.
✔️ TOUGH AS NAILS: Made from heat-treated steel with a rust-fighting galvanized & blue passivated finish.
✔️ SAFE & SOUND: Features a clever lock to stop the carriage from falling off accidentally.
✔️ FITS YOUR DESIGN: We can customize the length and screw holes for your perfect fit.
Perfect for building insane tool chests, sturdy machine doors, or any project that needs heavy-duty, pro-level motion.
